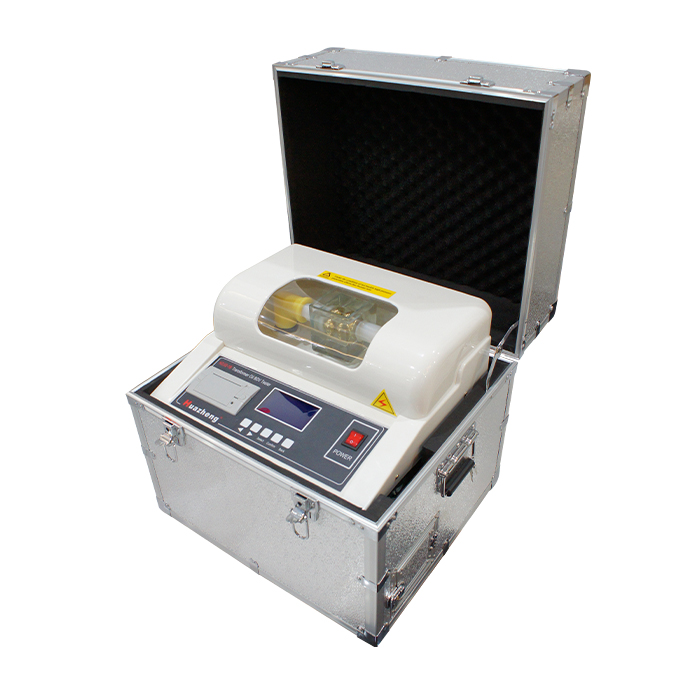

HZJQ-1B Transformer Oil BDV Measuring Kit

Product Description


Transformer Insulation Oil Tester performance:
1.withstand voltage test in the range of 0 ~ 80KV.
2.Large-screen LCD.
3.Simple operation
4.Store 100 experimental results, and display the currentenvironment temperature and humidity.
5.The whole process easy to control.
6.With overvoltage, overcurrent, limiting protection, in order to ensure the safety of operators.
7.With a temperature measurement display function and system clock display.
8.Standard RS232 interface.


Transformer Insulation Oil Tester parameter:

Output Voltage

0~80KV (100KV need special design)

Voltage Distortion Rate

<3%

Voltage Raising Speed

0.5~5 KV/S (adjustable)

Standing Time

15min(adjustable)

Boosting Interval

5 min(adjustable)

Boosting Frequency

1~6 time(s)

Booster Capacity

1.5KVA

Measuring Accuracy

±3%

Supply Voltage

AC100V~220V  50Hz±1 Hz

Power

200W

Applicable Temperature

-0℃~45℃

Applicable Humidity

≤75%RH

Overall Dimension

465 mm *385 mm *425mm
