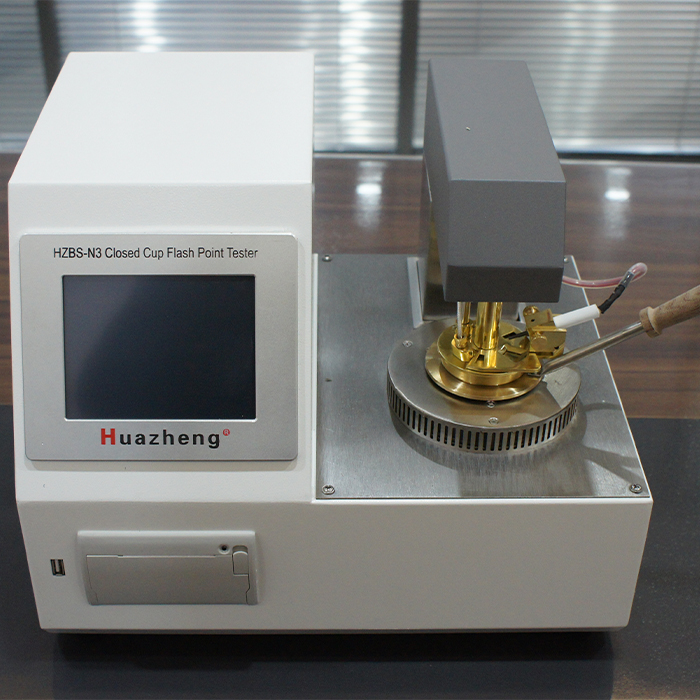

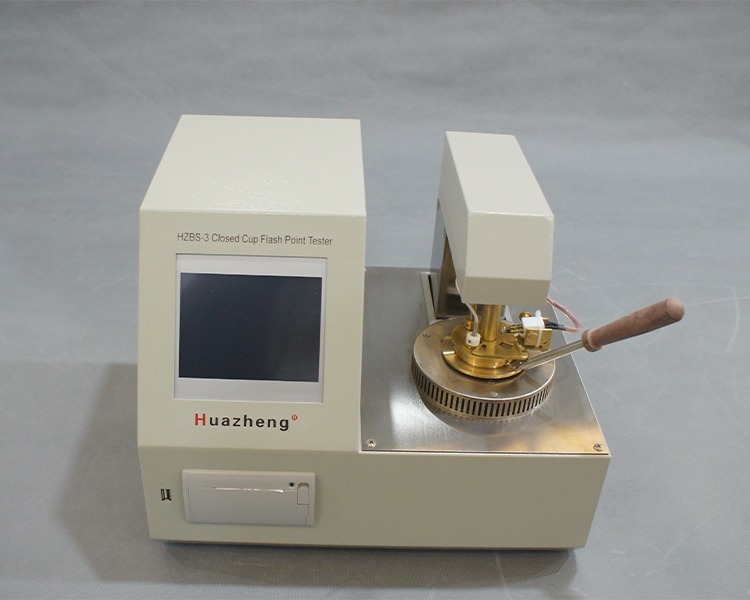

HZBS-3 Astm D93 Automatic Closed Cup Flash Point Device

HZBS-3 Closed Cup Flash Point Tester, color touch screen instead of keyboard operation. Used to determine the closed flash point value of petroleum products. Adopt advanced foreign technology, convenient and fast, open, fuzzy control integrated software, modular structure, in line with national standards, the United States and other standards. It is an ideal substitute for imported instruments. It is widely used in railway, aviation, electric power, petroleum industry and scientific research.

Main Technical index

1. Temperature Measurement

Temperature measuring range: -49.9°C400.0°C

Temperature control range: room temperature250℃

Repeatability: 0.029X(x=twice successive test average value)

Resolution: 0.1°C

Precision: 0.5%

Temperature Sensor: Platinum Resistor(PT100)

Flash fire detection: Thermocouple

2. Ambient Temperature: 10 ~ 40°C

Relative Humidity: ≤ 85% RH

Power Supply: AC 220V ± 10%

Power Consumption:  500 W

3. Heating rate: in line with national standards, the United States and other standards

4. Overall Dimension: 390X300X302(mm)

5. Instrument Weight: 1kg
