I.Overview

The engine coolant foam tendency tester is designed according to the requirements of the petrochemical industry standard of the People's Republic of China SH/T0066 "Engine Cooling Foam Determination Method", and is suitable for the determination of diluted or concentrated engine cooling Liquid foam.

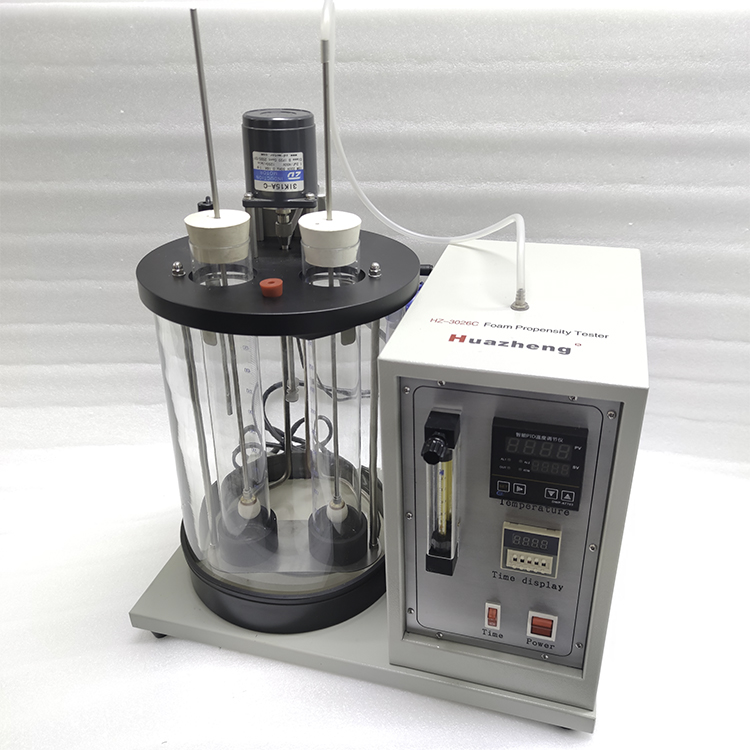

The instrument consists of a glass tank water bath, an electric control box, an electric heater, an intelligent digital temperature controller, a single-chip timing alarm, two 500ml heat-resistant glass graduated cylinders, two gas flow meters and two sets of gas diffusion heads. Apparatus construction and specifications comply with standard requirements ASTM D1881

II. Technical parameters

1. Input power: AC220V±10%，50Hz；

2. Heating power: 2000W；

3. Air flow: precise flow meter control

4. Temperature control range: Room temperature～99.9℃

5. Timing method: Automatic timing, can be set by yourself

6. Ambient temperature: -10～+40℃；

7. Relative humidity: ≤85%；

8. Instrument size: 350*280*360mm Weight :25kg

III.Packing list
