I.Overview

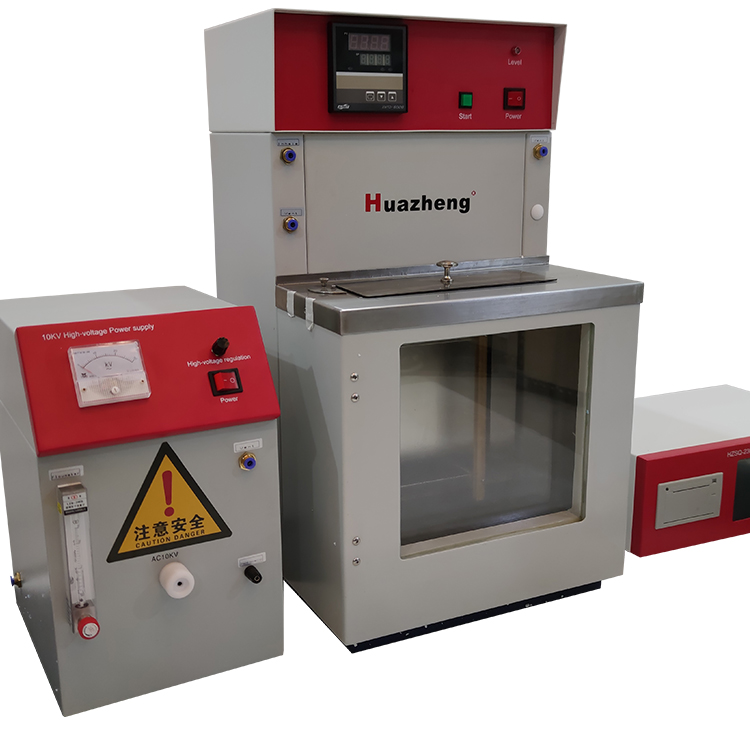

HZSQ-2300 insulating oil gas evolution tester complies with the standard ASTM D2300, GB/T11142-89 "Determination of gas evolution of insulating oil under electric field and ionization" standard Under the action of the electric field of the discharge at the gas junction, the method of releasing the tendency to absorb the gas.

The instrument adopts MCS-51 series single chip microcomputer as the system control core, and the configuration of 7-inch 256-color intelligent color screen display and screen touch keys ensures the advanced nature and reliability of the whole machine; Chinese LCD display, man-machine menu-type dialogue, wizard Type operation, with precision metal platinum resistance as the temperature measuring element, to achieve high-precision constant temperature control. It is characterized by reliable operation, simple operation and high precision. It is widely used in petrochemical, electric power, railway, scientific research and other departments. It is an indispensable equipment for oil analysis and quality inspection.

II.Technical indicators

⑴. Constant temperature: 80℃

Accuracy: ±0.3℃

Resolution: 0.1℃

⑵. Test voltage: 10.00KV

Accuracy: ±0.2KV

Resolution: 0.01KV

⑶. Time measurement: 5 MIN; 10 MIN; 50MIN; 60MIN; 120MIN

Accuracy: ±0.2

Resolution: 1S

⑷. Heater: 800W×2

⑸. Stirring motor: 25W

⑹. Stirring speed: 1200 rpm

⑺. Power supply voltage: AC220V±10% 50(60)Hz±1Hz

⑻. Dimensions of the host: 320×700×405(mm)(W×H×D)

Auxiliary machine dimensions: 200×400×280(mm) (width×height×depth) (high pressure box)

⑼. Weight: 35Kg

⑽. Use environment:

Temperature: 25℃±10℃

Relative humidity: <85%
